Rover R-1 Universal Battery Pack

DESIGNED FOR
ALL MACHINES

The story

Since the release of the wireless ROVER R-1 battery, we’ve been constantly receiving requests for batteries compatible with Wand and Flux machines.
And we get it.
The Flux machines are highly versatile, making them the favorite of many artists. On the other hand, the Power Wand is a rock-solid machine with an incredible size, making it especially lightweight and comfortable. Both are fabulous machines.
For us, it’s been a significant challenge to support machines of this caliber, as it requires meticulous attention to detail and hundreds of tests.
We are very pleased with the result we’ve achieved and are proud to expand the range of options available for these two brands. The ROVER R-1 Universal is the perfect choice for the tattoo artist who wants to have just one battery in the studio since it can be used with all their favorite machines.
Additionally, the universal Li-ion cells used by the ROVER ensure that none of your machines will become obsolete.

UNIVERSAL COMPATIBILITY UNIVERSAL COMPATIBILITY UNIVERSAL COMPATIBILITY UNIVERSAL COMPATIBILITY

CRITICAL/
BISHOP
CONNECTOR

The ROVER R-1 Universal is natively compatible with machines that use this connection port, so no additional connectors from the set are needed.

This connector uses a plug with O-rings that fit by compression into the ROVER R-1.

The mechanical connection is especially secure and sturdy. You’ll need to pull quite hard to remove the ROVER R-1 battery from the machine.

Machines that work with this standard include: Power Wand Liner, Shader, and Packer, Critical Torque, and Neuma 5.

POWERBOLT
CONNECTOR

This connector allows you to work with FK’s incredible machines that are compatible with this adapter (EXO, Flux, and Flux Max).

The ROVER R-1 does not do the extra features found in the original batteries of these machines, such as Bluetooth or eGive configuration.

RCA
CONNECTOR

This connector allows you to work with any RCA machine on the market.

The height of the RCA connector is perfectly suited for all the machines we’ve tested, ensuring it doesn’t interfere with the chassis.

3.5mm JACK
CONNECTOR

This connector is designed for use with all Cheyenne machines. The electrical wiring in our connector adheres to the positive/negative standard required by Cheyenne.

The connector size is perfect for all machines from the German brand, and the O-rings on the connector help keep the ROVER stable without wobbling inside the machine’s receptacle.

Machine Power Sensor

The power bar indicates how much power your machine is currently demanding in real-time.
This feature can be used to estimate your battery’s duration.
The higher the level shown in the power bar, the faster your battery will drain.
Every machine will have a different power bar level, affecting its battery duration.
Expect a battery duration between 2h and >7h (each Li-ion battery included).
Keep track of your power usage and make informed decisions with our easy-to-use machine sensor.

Replaceable Batteries

Your ROVER R-1 comes equipped with 2 replaceable Li-ion batteries.
While working, you can recharge the spare Li-ion battery, ensuring uninterrupted work.
You can even purchase additional batteries to work all day long by simply swapping them during your tattoo sessions.

These Li-ion batteries are standard (INR 18350-flat), so you can buy from your preferred provider locally or online, you are not tied to buy them from us.

Sustainability

On average, a Li-ion battery can last for 300 to 500 charge cycles. It’s important to note that a charge cycle is counted as one full charge from 0% to 100%, so partial charges or “top-ups” do not count as a full cycle.

With the ROVER R-1 at the end of your Li-ion battery’s life cycle, you can restore the original performance by simply replacing them.
Enjoy its top-notch performance for longer without sacrificing your commitment to the environment.

Technical
Specifications

Dimensions

1.18 x 2.3 in
30 x 60 mm
Weight with battery cell

2.5 oz
72 gr
Materials

Aerospace anodized aluminium
Output voltage

4V-12V
adjustable in 0.1V steps
Connector

Critical/Bishop.
Opt: FK PowerBolt, RCA, Cheyenne
Battery

Standard Li-ion 18350 (Flat)
Display

OLED 0.49 inch
Colour

Black
Product name

Rover R-1
Universal
Country of origin

Spain

User Manual

Quickstart guide

1 2 3 4 5 6 7 8

1

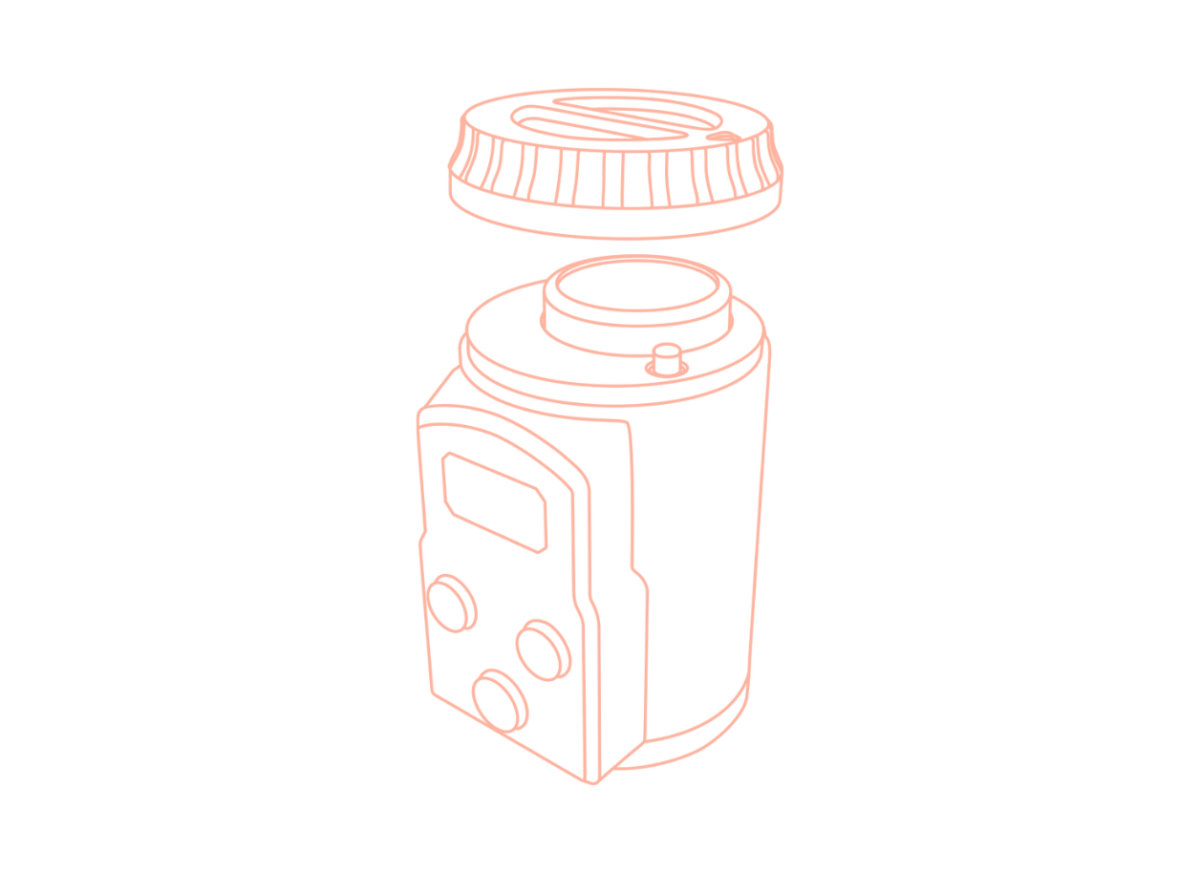

Open/Close the lid
1. Aling marks
2. Push down
3. Turn clockwise while pushing down
2
Battery insertion

Negative (-) Up

Postive (+) Down

(*) Use only compatible round 18350 Li-ion batteries (flat)
3
Display Information

Output Voltage: Precission voltage readout and displayed by default

Battery Readout: Bring display battery percentage by holding down center button for 1 sec.

Machine Power Sensor: The bottom-side bar displays machine perfomance in real time. High values indicate higher demand of power. This value can be used to estimate battery duration.
4
Adjust Machine Voltage

Adjust the voltage in 0.1V steps

Fast up/down by holding the buttons

From 5V up to 12V the battery is completely compatible with any tattoo machine.
5
Jumpstart ON/OFF

Configure the NITRO Jumpstart (ON/OFF) by pressing UP and DOWN simultaneously for 3 seconds.
Navigate the menu with UP/DOWN and select your option with the red button
6
ON/OFF

Turn ON/OFF by holding down the button for 3 sec

Start/Stop the output by clicking once
7

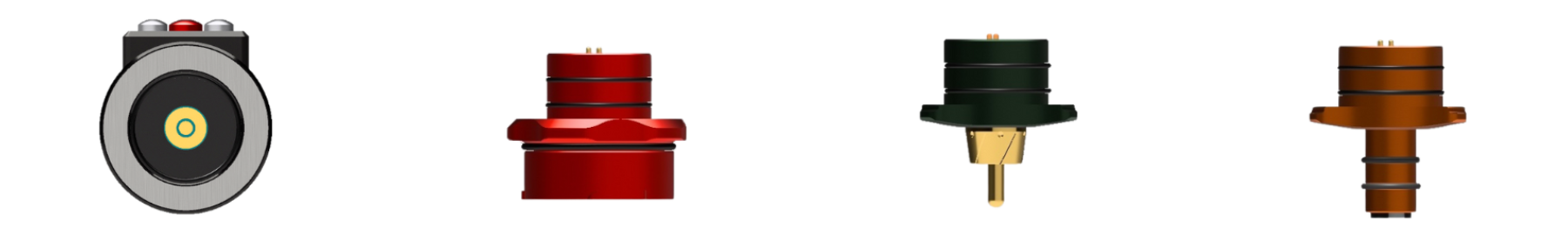

Connectors
The ROVER R-1 Universal can be purchased on its own for use exclusively with the Power Wand or with a set of 3 connectors to be compatible with other machines.

The set includes the following connectors:
- FK PowerBolt :Compatible with Flux, Flux Max, Exo.
- RCA : Compatible with all RCA machines
- 3.5 mm Jack : Compatible with Solnova v1 and v2, Hawk, Unio, Thunder, Sol Terra, Sol Luna
8
Charging Batteries

Charge the batteries Externally with the USB compatible charger while keep working

Respect polarity when charging (see led indicator)

Remove the battery when the indicator displays end of charge

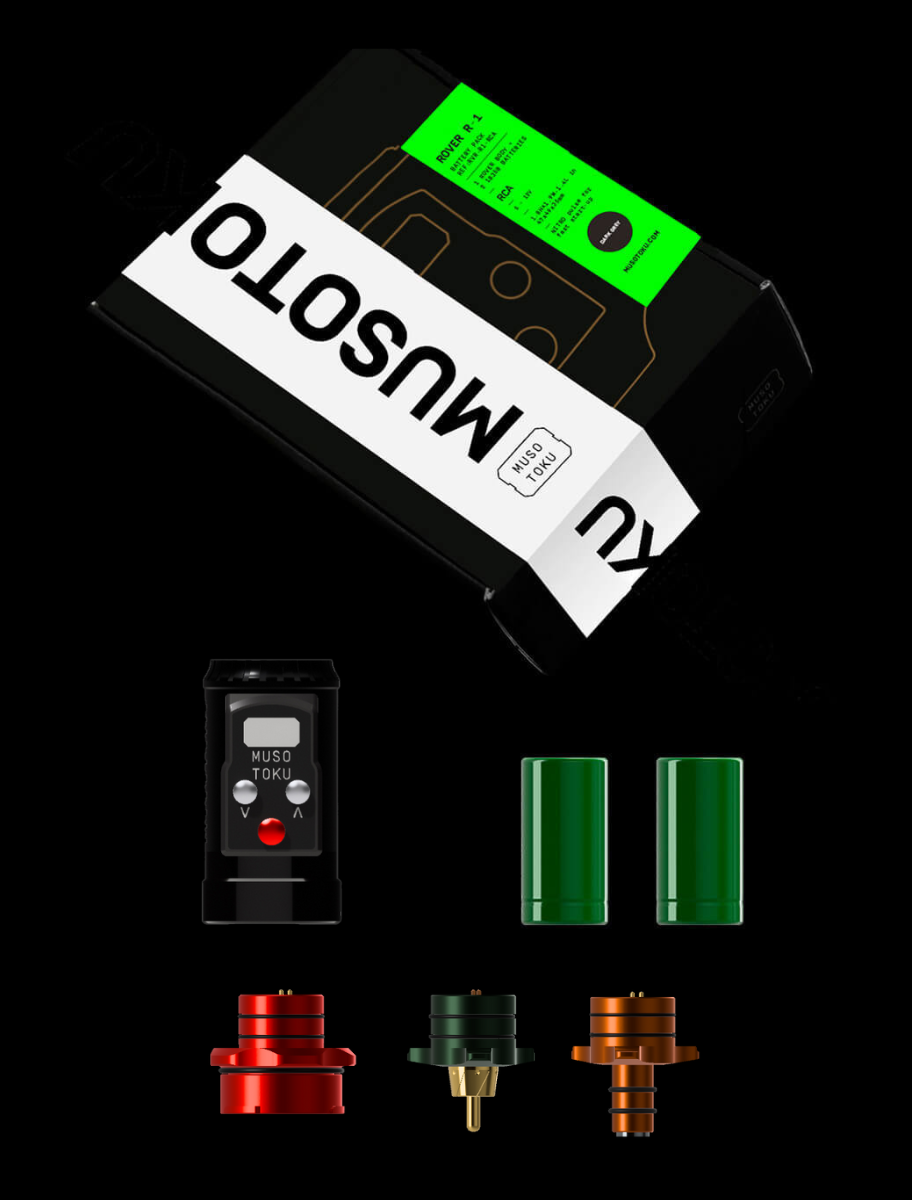

WHAT'S
INCLUDED

ROVER R-1 Universal
Set of connectors (opt.)
x2 Li-ion Batteries 18350
USB Compatible Charger
Instructions
