- Aling marks
- Push down
- Turn anti-clockwise while pushing down
ABOUT BATTERY LIFE
The ROVER R-1 runs on standard replaceable batteries.
Simply put: when you need a recharge, swap in a fresh battery and keep working.
Experience the power of MUSOTOKU concentrated in a wireless battery for your tattoo machines.
Say goodbye to wasteful battery packs – the ROVER R-1 runs on removable batteries so battery aging won’t be a concern anymore. Upgrade your battery duration and ensure power consistency.
We’ve focused on what matters to you: consistent power regardless of battery percentage, compact size, durable connectors, and our iconic aerospace-grade aluminum design. All with simplicity in mind.
And of course, travel hassle-free with Rover’s removable battery, approved for air travel.
POWER
Power level is always maintained at any battery percentage. If there is not enough power available from the battery the ROVER R-1 will stop and inform.
IN 0.1V
Adjust the machine voltage in 0.1V precise steps.
And also Fast UP/DOWN by holding down the buttons.
SIZE
Compact and lightweight. Built with aluminum.
It’s surprisingly small because ROVER R-1 is at least 20% smaller than other models in the market
PROTECTION
Rest assured, your delicate machine is always protected. With over 1,000 continuous checks per second, we ensure safe operation at all times. Trust ROVER R-1 to keep your machine running smoothly.

The power bar indicates how much power your machine is currently demanding in real-time.
This feature can be used to estimate your battery’s duration.
The higher the level shown in the power bar, the faster your battery will drain.
Every machine will have a different power bar level, affecting its battery duration.
Expect a battery duration between 2h and >7h (each Li-ion battery included).
Keep track of your power usage and make informed decisions with our easy-to-use machine sensor.
Your ROVER R-1 comes equipped with 2 replaceable Li-ion batteries.
While working, you can recharge the spare Li-ion battery, ensuring uninterrupted work.
You can even purchase additional batteries to work all day long by simply swapping them during your tattoo sessions.
These Li-ion batteries are standard (INR 18350-flat), so you can buy from your preferred provider locally or online, you are not tied to buy them from us.
On average, a Li-ion battery can last for 300 to 500 charge cycles. It’s important to note that a charge cycle is counted as one full charge from 0% to 100%, so partial charges or “top-ups” do not count as a full cycle.
With the ROVER R-1 at the end of your Li-ion battery’s life cycle, you can restore the original performance by simply replacing them.
Enjoy its top-notch performance for longer without sacrificing your commitment to the environment.
MINI-JACK
The RCA model features a premium Amphenol connector that’s gold-plated and designed with a spring mechanism that doesn’t lose force over time. Its strength and retention will keep your RCA machine secure.
For those looking for a 3.5mm mini-jack connector, the ROVER R-1 has been specifically designed to work with all Cheyenne machines.
The neck of the ROVER R-1 connector has been carefully designed to fit nicely in the incredible Hawk Pen Unio, and with the legendary Cheyenne Hawk Thunder (all versions).
Finally we added o-rings to the neck to ensure optimal contact with other Cheyenne machines with larger socket entries, such as the Solnova and the Hawk pen.
Trust in our connectors to provide a reliable and secure connection every time.

Specifications
-
Dimensions1.18 x 2.7 in
30 x 69 mm -
Weight2.5 oz
72 gr -
MaterialsAerospace anodized aluminium
-
Output voltage5V-12V
adjustable in 0.1V steps -
ConnectorRCA or
Mini-jack 3.5mm -
BatteryLong-lasting Li-ion 1835 (Flat)
-
DisplayOLED 0.49 inch
-
ColourGreen/Black or
Orange/Black -
Product nameRover R-1
-
Country of originSpain

-

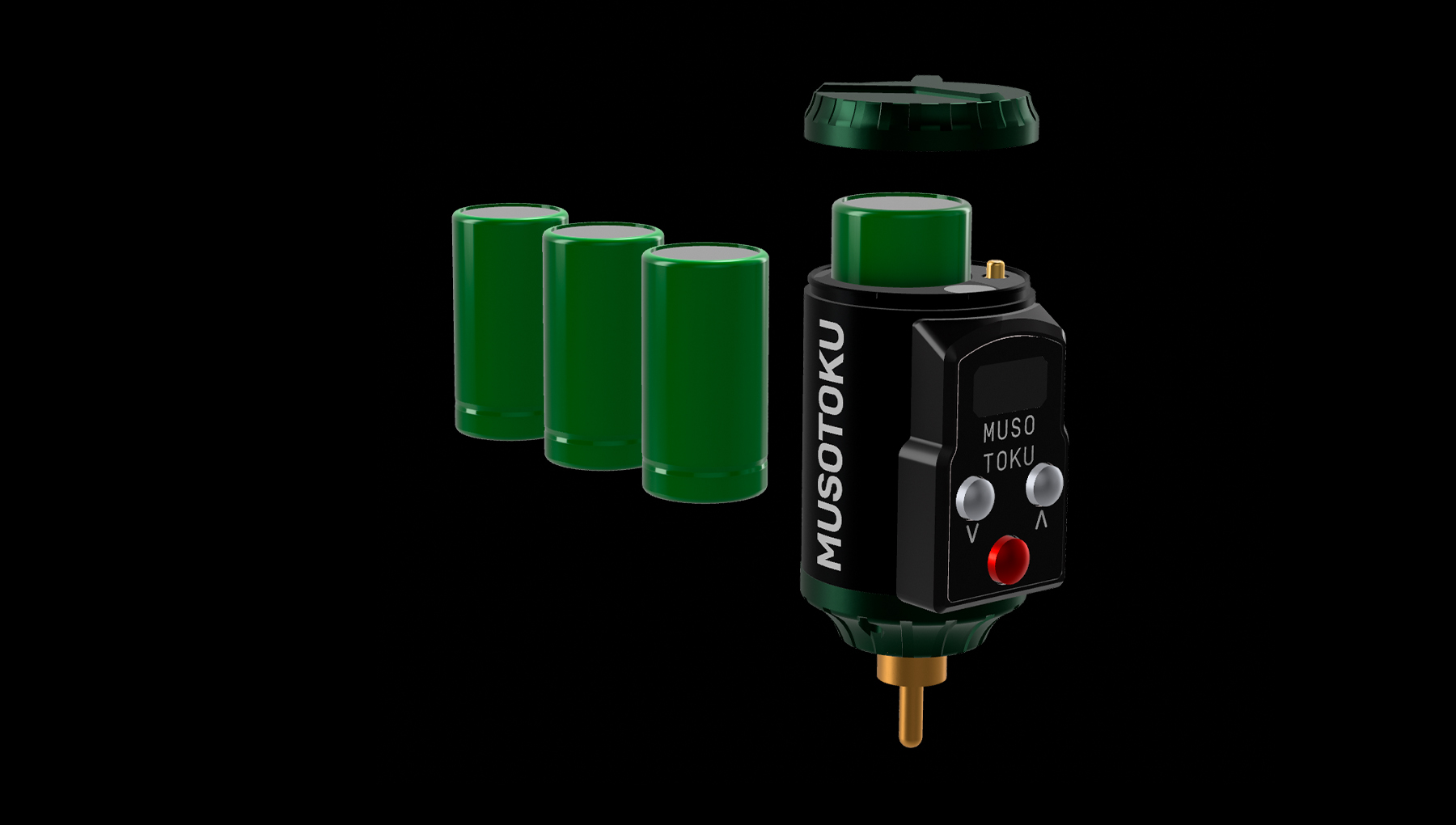

1Open/Close the lid
-
2Battery insertion
Negative (-) Up
Postive (+) Down
(*) Use only compatible round 18350 Li-ion batteries (flat)
-
3Display Information
Output Voltage: Precission voltage readout and displayed by default
Battery Readout: Bring display battery percentage by holding down center button for 1 sec.
Machine Power Sensor: The bottom-side bar displays machine perfomance in real time. High values indicate higher demand of power. This value can be used to estimate battery duration.
-
4Adjust Machine Voltage
Adjust the voltage in 0.1V steps
Fast up/down by holding the buttons
-
5ON/OFF
Turn ON/OFF by holding down the button for 3 sec
Start/Stop the output by clicking once
-
6RCA / Mini jack
Available in RCA and Jack 3.5mm connectors.
-
7Charging Batteries
Charge the batteries with the USB compatible charger
Respect polarity when charging (see led indicator)
Remove the battery when the indicator displays end of charge
INCLUDED
- Rover R-1 Battery Pack (RCA or Mini-Jack 3.5)
- 2x 1835 Li-ion Batteries + case
- USB compatible External charger for batteries
- Instructions
